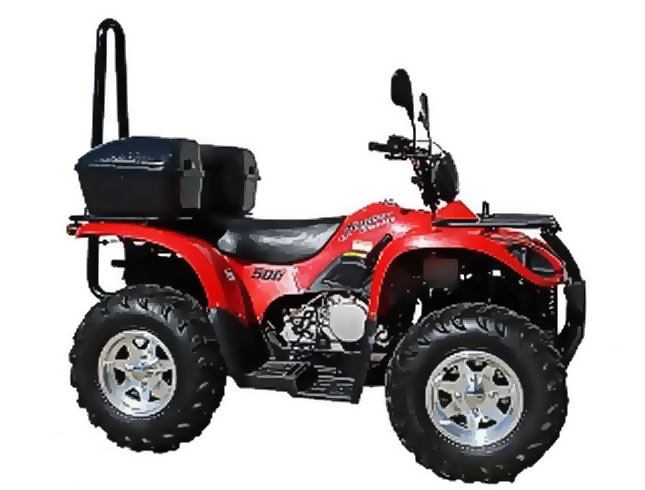

JAG500 4×4 ATV

Specifications
Engine Type	4 Stroke Single Cylinder
Transmission System	CVT Auto (2×2) (4×4) High/Low Range Shift R-N-L-H (Hand Operated)
Piston Displacement	500cc
Maximum Power	22KW 30hp
Maximum Torque	42nm @ 5000rpm
Starting System	Electric Start
Cooling	Air Cooled
Brake (Front/Rear)	Disc Brakes
Cooling	Liquid/Thermo Fan
Warranty	12 months
Dimensions
Overall Length	2020mm
Overall Width	1150mm
Overall Height	1200mm (top of bars)
Wheelbase	813mm
Seat Height	980mm
Ground Clearance	250mm
Weight	360kg
Features include
Alloy wheels Front/Rear Carry Racks Tow Hitch Rear Vision Mirrors Speedo/Odometer Ignition Key Steering Lock	Owners Manual/Toolkit Front Protection Bar 2,500lb Winch Head/Tail Light indicators Fuel & Temp Gauges Locking Fuel Cap 12V Acc. Power Supply

Available in Red Only

OPTIONS

Roll Over Protection Bar
Rear Storage Box

PRICE $6900
